New

DT-U31

Special Price 4411.68€ +VAT

Not in stock

Quick Overview

  • Monitor 31.5" with Multiviewer
  • LCD IPS 31" 3840x2160Pixel
  • 12G/3G/HD/SD-SDI & HDMI UHD
  • Up to 3840x2160 50P/60P
  • 12G Optical Fiber input
  • Tally & Headphones output
  • Waveform/Histogram/Vector
  • RS-485/GPI/Ethernet RJ-45

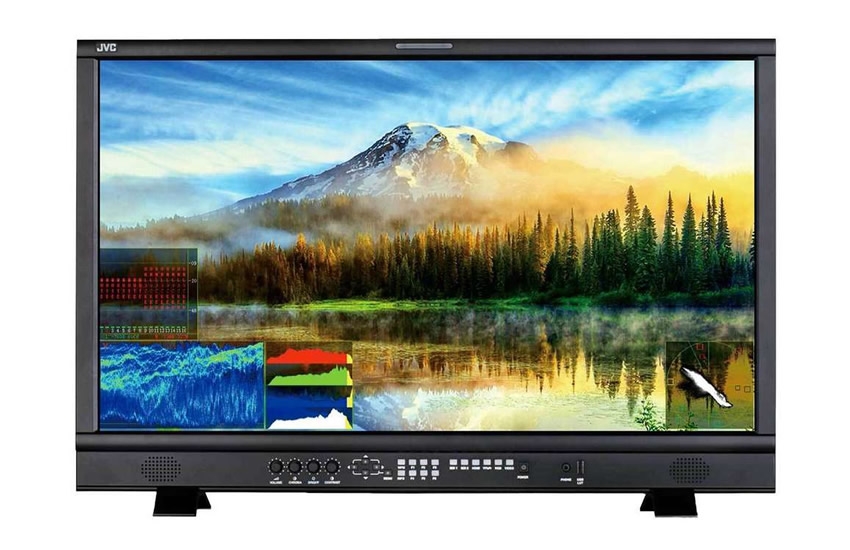

DT-U31

The new DT-U Series of 4K displays offers a high-quality solution for 4K monitoring. The DT-U31 31.5" 3840x2160 resolution model features multiple 4K interfaces, supporting 4x 3G-SDI quad link input (both quad and 2SI) and 4K60p HDMI 2.0 input, with built-in 3D LUT auto-calibration. It has a wide colour range and HDR signal support, along with built-in front panel USB colour calibration sensor support, IP remote control, measurement tools and a future SFP slot.

  • Native Panel resolution 3840 x 2160
  • 31.5-inch UHD 10-bit IPS panel
  • 14 Bit signal processing
  • Multiview 4 screen Display mode show 1 4K 12G source and 3 3G sources or 4 times 3 G sources include audio and UMD information for each screen part
  • Wide colour range ITU709 / DCI-P3(99.2%) / BT2020(75.6%)
  • Brightness 300 cd/m²
  • Contrast: 3000:1
  • HLG and PQ-HDR capability
  • 12G-SDI In/Out
  • 4 x 3G-SDI QUAD 4K or HD inputs
  • HDMI 2.0 input
  • SFP future slot
  • Low Latency Mode, for critical audio/video applications
  • Built-in Auto Calibration (only external sensor is needed)
  • Built-in 3D-LUT
  • IP Remote control
  • 16ch audio meters with alert and output selection
  • Waveform monitoring with line selector
  • Vector and histogram tools
  • Signal support up to 4096x2160P 60/50 Hz
  • Flexible gamma selection from 1.0 to 3.0 in 0.1 steps
  • TSL Tally and GPI Tally included on screen marker
  • lot´s of additional Monitor tools, include Field/Frame selection, Zoom, H/V delay, Focus, RGB Mono, SDI Time code, Safety and screen markers, etc.
  • Comes with a adjustable U-Stand

DT-U31

    STATUS

  1. Status

    New

    Monitor Type

    Preview Monitor

  2. OPTIONS-SXETIKA

  3. Options

    31" UHD

  4. PANEL

  5. Panel Size

    31.5"

    Panel Type

    LCD IPS

    Panel Resolution

    4K: 3840 x 2160pixels(16:9 aspect ratio)

    Panel Aspect Ratio

    16:9

    Input Resolutions

    SD 576i PAL(16:9)

    SD 480i NTSC(16:9)

    HD 720: 1280x720pixels(16:9 aspect ratio)

    HD 1080: 1920x1080pixels(16:9 aspect ratio)

    2K: 2048 x 1080pixels(1.89 aspect ratio)

    UHD: 3840x2160pixels

    Frames Supported

    24P/25P/30P/50P/60P @3840x2160Pixel
    24P/25P/30P/50P/60P @2048x1080Pixel
    24P/25P/30P/50P/50i/60P/60i @1920x1080Pixel
    24P/25P/30P/50P/60P @1280x720Pixel
    576/50i/50P
    480/60i/60P

    Contrast

    3000:1

    Brightness

    300 nits

    Colors

    1.073G

    Color Depth

    10-bit

    Viewing Angle

    178 Degrees

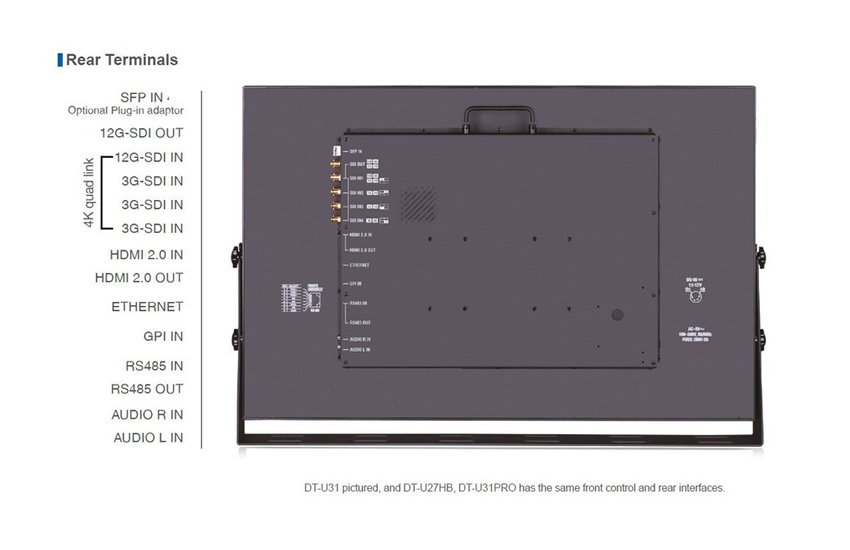

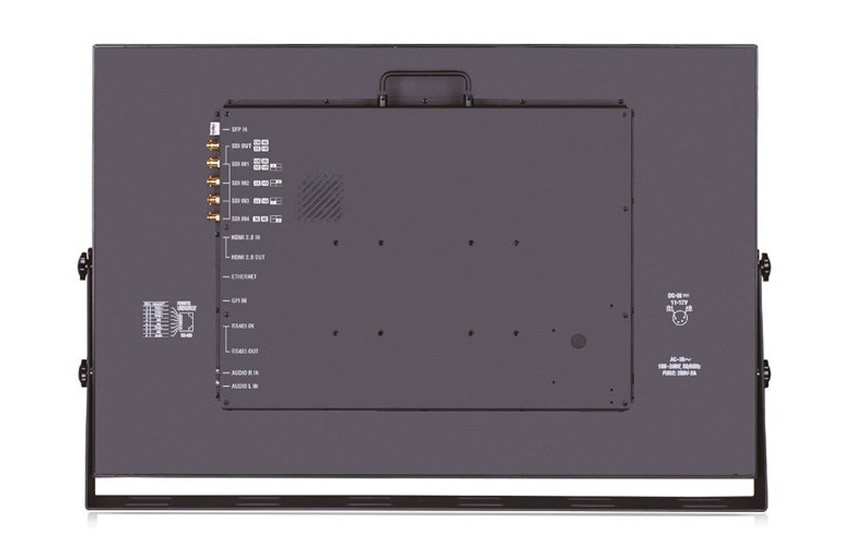

  6. CONNECTIONS

  7. Video inputs

    12G/3G/HD/SD-SDI (BNC)

    3G/HD/SD-SDI (BNC)

    HDMI 4K

    Video outputs

    12G/3G/HD/SD-SDI (BNC)

    HDMI 4K

    Audio inputs

    RCA Line

    16CH embedded audio SDI

    16CH embedded audio HDMI

    Audio outputs

    Jack 3.5mm Phones

    16CH Embedded Audio SDI

    16CH Embedded Audio HDMI

    PC Connections

    USB

    RS-485

    GPI

    Ethernet RJ-45

    12G Optical Fiber Input

  8. GENERAL FEATURES

  9. Monitor Features

    Waveform

    Vectorscope

    Histogram

    Focus Assist

    Zebra

    False Color

    Blue Only

    Guides - Safety Marker

    3D LUT Support

    Audio Meters

    Timecode Display

    HDR (high dynamic range)

    Signal Processing

    14-bit

    Tally

    Yes

    Speakers

    Yes

  10. MORE SPECIFICATIONS

  11. Extras

    Flexible Gamma selection from 1.0 to 3.0 in 0.1 steps.
    Internal Multiviewer for all the 4 video inputs.

    Power

    4pin XLR DC input

    AC 220V

    Power Consumption

    Not specified

    Warranty

    2-Years

    Country of Origin

    Japan

  12. PHYSICAL

  13. Total Weight (KG)

    16.5

    Weight in Detail

    Weight includes the Stand

    Total Dimensions (WxHxD) (mm)

    759x529x150

    Dimensions in Detail

    Dimensions include the Stand

    Availability

    Usually in 9working days

DT-U31

  • Monitor
  • Power cable

DT-U31

General Features

JVC DT-U Monitors Review

DT-U31

    No available accessories
