GY-LS300CHE-Olympus

Special Price 2395.97€ +VAT

Not in stock

Quick Overview

  • HD/4K Handheld Camera
  • Free Olympus 12-40mm Lens
  • Slow Motion & Streaming
  • 4K 24P/25P/30P 150Mbps
  • 3840x2160 50P/60P with Inferno
  • 3840x2160 24P/25P/30P 4:2:2
  • Super-35 4K Sensor
  • MFT-Mount Lenses
  • HDMI 4K & SDI Outputs
  • XLR Inputs

GY-LS300CHE-Olympus

Cinematic Excellence

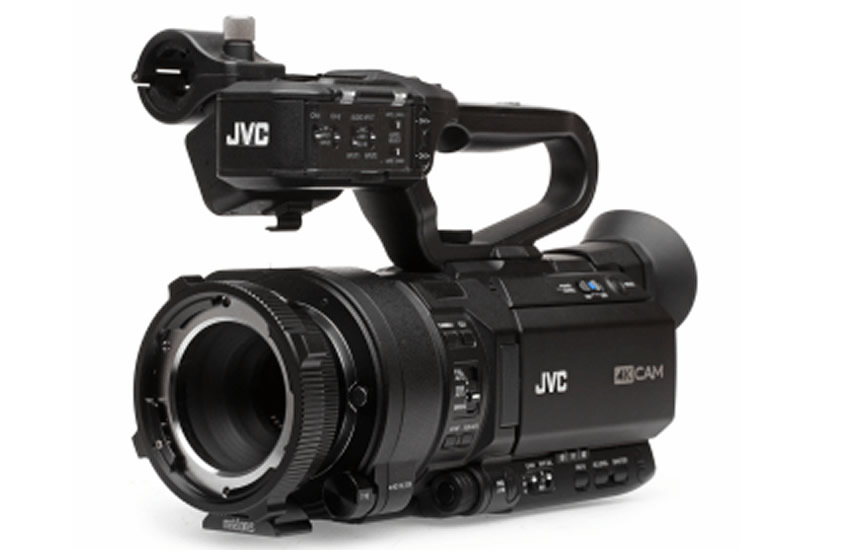

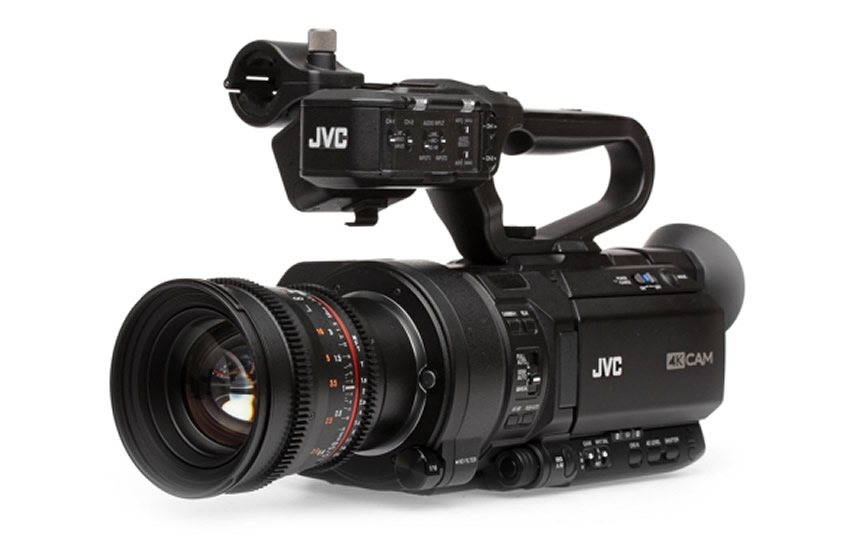

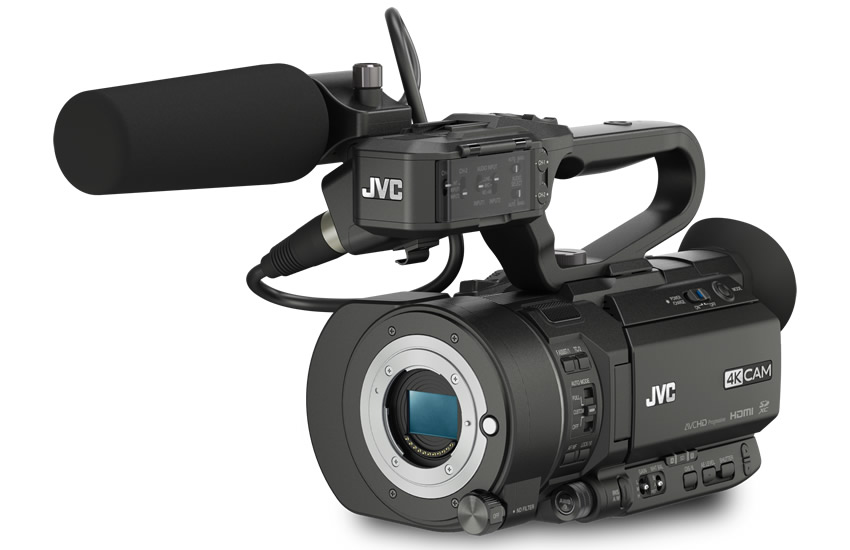

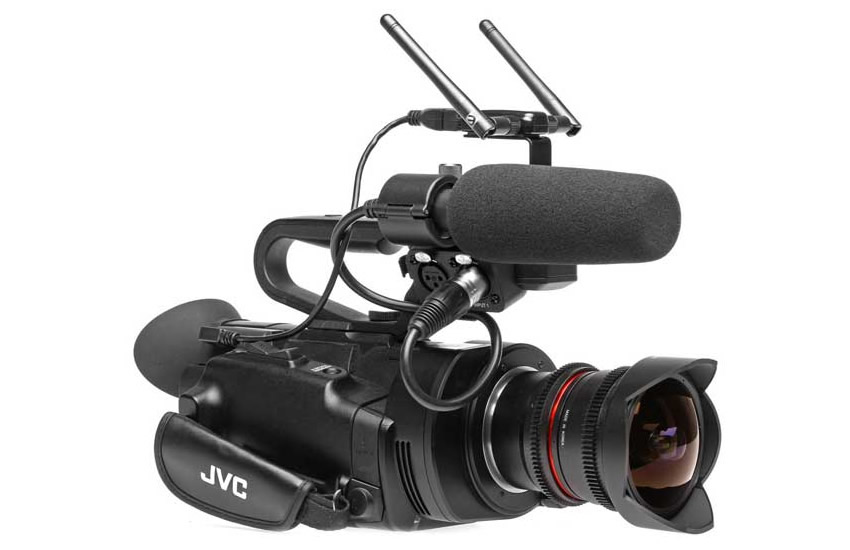

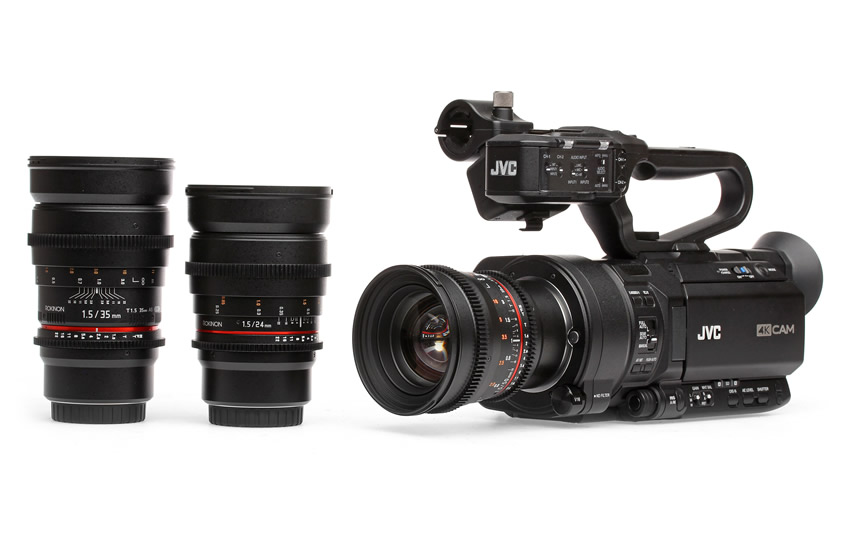

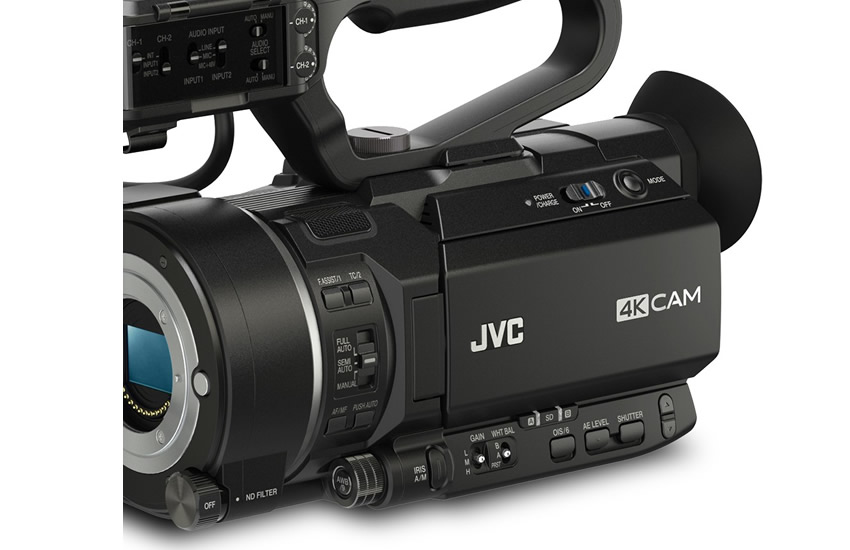

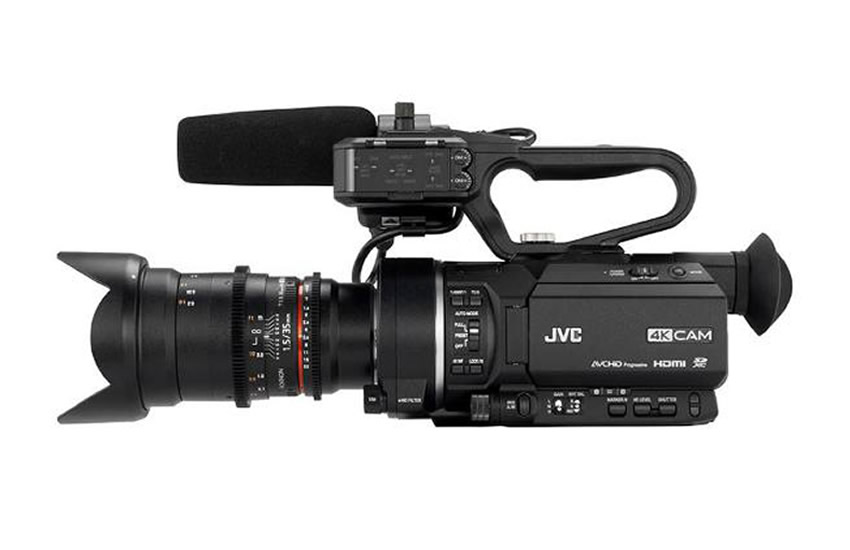

The all new JVC GY-LS300 is a compact, ultra high definition, interchangeable lens camera with a 4K Super 35mm CMOS sensor. It uniquely accommodates a wide range of cinema and photographic lenses and adapters for dazzling cinematic effects. Create hours of pristine recordings on SDHC media in a variety of image formats including 4K Ultra HD, Full HD with 4:2:2 sampling, SD and web friendly proxy formats. Its dual codec design allows you to make 2 copies of your program simultaneously.

You can even stream live HD over the internet to content delivery networks such as USTREAM while recording full HD. Conventional DSLR cameras simply can't match the high reliability, long recording time and ergonomics provided by the GY-LS300. No other removable lens video camera offers this much flexibility in such a compact, easy-to-handle form factor.


Super 35mm CMOS 4K Image Sensor

The GY-LS300 features a JVCKENWOOD 4K CMOS Super 35mm image sensor uniquely combined with an industry standard Micro Four Thirds (MFT) lens mount. Super 35mm Cinema lenses may be used and will retain their native angle of view.*


Micro Four Thirds Lens Mount & Variable Scan Mapping

When the camera is used with MFT, Super 16 and other size lenses, JVC's proprietary Variable Scan Mapping feature will maintain the lens's native angle of view. This gives filmmakers the flexibility of using widely available MFT lenses as well as high end cinema lenses. The unique combination of the MFT mount, the larger S35 image sensor and Variable Scan Mapping give the camera nearly limitless lens options.


4K Ultra HD Recording at 150Mbps and Live Output

Working with 4K has never been easier! Insert an SDHC or SDXC (UHS-I Speed class 3) memory card and record hours of 4K Ultra HD (3840 x 2160) material. Recordings are made using the Quicktime (.MOV) file format and are compatible with many popular editing systems. Connect a 4K Ultra HD monitor with a single HDMI cable, and view the camera's live 4K signal. You can also play back recorded files directly from the camera.


4:2:2 Full HD Recording at 50Mbps

The ability to record 4:2:2 60p at 50 Mbps makes the GY-LS300 ideal for general HD production work. 50Mbps files are stored in the Quicktime (.MOV) format for easy editing. Conventional AVCHD (4:2:0) recording is also possible, providing wide editing compatibility in an array of standard HD and SD formats.


Live Streaming & FTP

The GY-LS300’s built-in HD streaming engine with Wi-Fi and 4G LTE connectivity allows live HD transmission directly from the camera to your viewers while recording HD to one of the SDHC card slots. Streaming has never been easier now that you can deliver live HD to content delivery networks such as USTREAM and YouTube.


GY-LS300CHE-Olympus

    STATUS

  1. Camera Type

    Handheld Camera

    HD Camera

    4K Camera

    Status

    New

  2. VIDEO SPECIFICATIONS

  3. Video Format

    AVCHD 2.0(MPEG4/H.264) up to 28Mbps - 4:2:0/8bit - M2TS files

    MPEG4/H.264 up to 50Mbps - 4:2:2/8bit - MOV files

    MPEG4/H.264 up to 150Mbps (4K/HD) - 4:2:0/8bit - MOV files

    Video Resolution

    SD 480i NTSC(16:9)

    SD 576i PAL(16:9)

    HD 720: 1280x720pixels(16:9 aspect ratio)

    HD 1080: 1440x1080pixels(4:3 aspect ratio)

    HD 1080: 1920x1080pixels(16:9 aspect ratio)

    4K UHD: 3840 x 2160pixels(16:9 aspect ratio)

    Slow Motion

    Yes

    Quick Motion - Time Lapse

    No

    Frame Rate

    24P/25P/30P @3840x2160Pixel
    24P/25P/30P/50i/50P/60i/60P/120P @1920x1080Pixel
    50i/60i @1440x1080Pixel
    50i @720x576Pixel
    60i @720x480Pixel
    Slow motion: 120P @1920x1080Pixel.
    50P/60P @3840x2160Pixel only with inferno.

    Rec Media

    SD/SD-HC/SD-XC Card

    Simultaneous REC

    Yes

    Rec Time

    267min @28Mbps with 64GB REC-Media

    148min @50Mbps with 64GB REC-Media

    49min @150Mbps with 64GB REC-Media

    Pre Record

    Yes

  4. LENS SYSTEM

  5. Sensor Type

    CMOS

    Sensor Size

    Super 35 (crop factor 1.51)

    Sensor Resolution

    4K

    Lens Type

    Changeable 4/3" MFT Mount

    ND Filters

    Yes

  6. CONNECTIONS

  7. Video outputs

    3G/HD/SD-SDI (BNC) 4:2:2

    HDMI 4K

    CVBS (Jack to RCA)

    Audio inputs

    3-PIN XLR MIC/LINE

    Jack 3.5mm Stereo

    Audio outputs

    Jack 3.5mm Stereo

    Jack to 2xRCA

    2CH Embedded Audio SDI

    2CH Embedded Audio HDMI

    PC Connections

    USB2.0

    USB2.0 Host

    Other Connections

    Remote Zoom (Jack 2.5mm)

  8. GENERAL FEATURES

  9. Min. Illumination

    1LUX

    Live Streaming

    Yes

    FTP Transfer

    Yes

    LCD

    3.5 inch

    Viewfinder

    0.24"

  10. MORE SPECIFICATIONS

  11. Power

    JVC SSL-JVC50 Type Battery

    Power adapter

    No. of battery slots

    1

    Warranty

    2-Years

    Country of Origin

    Japan

  12. PHYSICAL

  13. Total Weight (KG)

    1.70

    Total Dimensions (WxHxD) (mm)

    135x191x359

    Dimensions Details

    Dimensions calculated without lens

    Availability

    Usually in 9working days

GY-LS300CHE-Olympus

  • Camera
  • Free Lens Olympus M-Zuiko PRO ED 12-40mm
  • Battery 4900mAh
  • Upper Handle with XLR Connectors
  • Microphone
  • Wireless Remote Control
  • AC adaptor
