HM360 CMOS 1/2.3" 19X HD

MFR #JY-HM360  BLK #197-0306

Special Price

Not in stock

Quick Overview

  • Handheld Camera
  • AVCHD 28Mbps/H264 50Mbps
  • CMOS 1/2.3" 18.9MP
  • 29.9-586mm 19X F1.2
  • 1920x1080 50P/60P
  • 2x SD-HC/SD-XC
  • HDMI/CVBS  Outputs

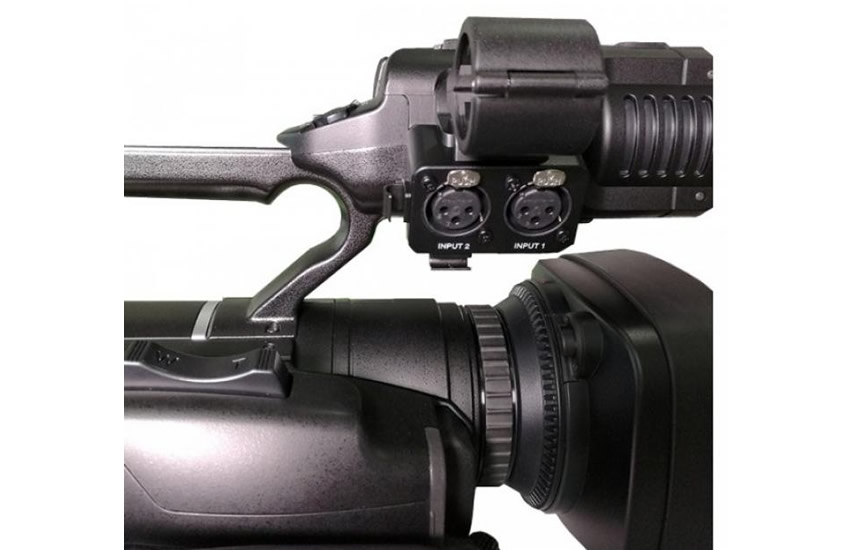

  • 2x XLR Inputs

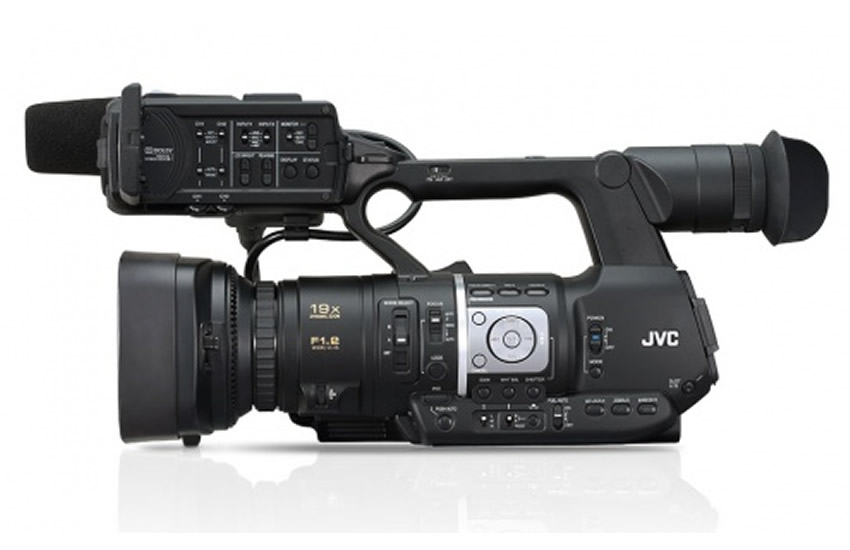

HM360 CMOS 1/2.3" 19X HD

The JVC JY-HM360 handheld HD Memory camcorder with dual SDHC/SDXC card slots, light enough to take with you anywhere, ideal for use by wedding and event videographers. It features 1/2.3-inch 18.9 Megapixel back-illuminated CMOS sensor, when  combined JVC’s dynamic 19X F1.2 Bright GT lens, delivers high resolutions pictures, with excellent sensitivity and less noise even in low light environment. This makes it possible to record social functions or weddings without the need for additional lighting. The HD camcorder features JVC’s original high-speed picture processing FALCONBRID™ engine. An array of popular codecs and file formats are supported including H.264 video format in 50Mbps (MOV) extreme high quality (XHQ) mode for virtually no block noise when capturing moving objects. The JY-HM360 ergonomically designed for quality performance with number of functions ideal for wedding filming, including Face Recognition Auto Focus, Optical image stabiliser and beautiful skin mode.

High-performance CMOS Sensor Combined with F1.2 Lens for High-sensitivity Shooting.
At the heart of the JY-HM360 is a 1/2.3-inch 18.9 M pixel back-illuminated CMOS sensor, which offers high resolution recordings. When combined with JVC’s Dynamic 19x F1.2 Bright GT Lens, brilliant results with excellent sensitivity and less noise can be achieved even in low light environments. This way you can record events, social functions, or weddings without the need for additional lighting.

Professional Layout, Stylish Design and User-friendly Operations
As a handheld camcorder, the JY-HM360 is ergonomically designed to satisfy discerning videographers. For instance, 3 Rec Trigger button is convenient for any shooting scenes while Zoom Seesaw lever enables smooth zooming from very slow to high speed. The camera also features essential switches and buttons for shooting including white balance, iris, gain, and focus, which are located mainly on the left side panel, enabling intuitive controls to quickly change settings even while shooting. Up to 11 functions can be customized that are assigned to seven user buttons on the camera body and four on the LCD’s cross-shaped buttons.

For higher level of shooting, image parameters such as gamma and color-matrix as well as other detail settings can be customized and stored in both the camera’s internal memory and SDHC/SDXC card.

Optimum Shooting Mode with Flick of a Switch using Scene Select
As a wedding cameraman, you might use spot lighting to create more dramatic scenes. However, a sudden change in lighting requires quick adjustment of shooting modes. In such instances, the Scene Select function comes in handy as it enables selection of the optimum shooting mode with the flick of a switch. Position A and B in Scene Select can be assigned to specific scenes such as Indoor and Outdoor, both Indoors, or both Outdoors, each of which are assigned with five shooting modes. Using the menu displayed on the LCD and viewfinder. These modes can be set with values. Once set, you simply flick between A and B to achieve the optimum lighting for a scene.

Dual SD Card Slots for Maximum Failsafe Recording
Dual SDHC/SDXC card slots make the JY-HM360 a truly versatile camcorder, offering different recording modes with reliable and cost-effective media. Series (or relay) recording is for making long-hour seamless recording from card A to B and vice versa, Simultaneous (or dual) recording for creating 2 identical cards at same format, and Backup recording for creating 2 different recordings – while the REC trigger is used to REC and STOP recording on one card, the other card can act as a continuous backup that overrides the pause function.

HM360 CMOS 1/2.3" 19X HD

    STATUS

  1. Status

    New

    Camera Type

    Handheld Camera

    HD Camera

  2. VIDEO SPECIFICATIONS

  3. Video Format

    AVCHD 2.0(MPEG4/H.264) up to 28Mbps - 4:2:0/8bit - M2TS files

    JVC XDCAM EX HD(MPEG2 HD MP@HL) 35Mbps - 4:2:0/8bit - MP4 files

    JVC XDCAM EX HD(MPEG2 HD MP@HL) 35Mbps - 4:2:0/8bit - MOV files

    JVC H.264 XHQ 50Mbps - 4:2:0/10bit - MOV Files

    Video Resolution

    SD 576i PAL(16:9)

    HD 720: 1280 x 720pixels(16:9 aspect ratio)

    HD 1080: 1440 x 1080pixels(4:3 aspect ratio)

    HD 1080: 1920 x 1080pixels(16:9 aspect ratio)

    Slow Motion

    No

    Quick Motion - Time Lapse

    No

    Frame Rate

    50i/50P/60i/60P @1920x1080Pixel
    50i/60i @1440x1080Pixel
    50P/60P @1280x720Pixel
    50i @720x576Pixel

    Rec Media

    SD/SD-HC/SD-XC Card

    Simultaneous REC

    Yes

    Rec Time

    267min @28Mbps with 64GB REC-Media

    213min @35Mbps with 64GB REC-Media

    148min @50Mbps with 64GB REC-Media

    Pre Record

    Yes - 15sec

  4. LENS SYSTEM

  5. Sensor Type

    CMOS

    Sensor Size

    1/2.3"

    Sensor Resolution

    18.9MP

    Lens Type

    Fixed

    Lens Manufacturer

    JVC

    Focal Length

    29.9mm to 586mm (35mm equivalent)

    Zoom

    19X

    Aperture

    Wide: F1.2 to F11
    Tele: F2.8 to F21

    Control Rings

    1 Ring(Focus)

    Auto Focus

    Yes

    Image Stabilizer

    Yes

    Filter Diameter

    46mm

    ND Filters

    No

  6. CONNECTIONS

  7. Video outputs

    HDMI

    CVBS (Jack to RCA)

    Audio inputs

    3-PIN XLR Mic/Line

    Audio outputs

    Jack 3.5mm Phones

    Jack to 2xRCA

    2CH Embedded Audio HDMI

    PC Connections

    USB

    Other Connections

    Remote Zoom (Jack 2.5mm)

  8. GENERAL FEATURES

  9. Shutter speed

    1/6sec to 1/10000sec

    Min. Illumination

    3 LUX

    Streaming

    No

    File Transfer

    No

    LCD

    3.5"

    Viewfinder

    0.24"

  10. MORE SPECIFICATIONS

  11. Power

    JVC SSL-JVC50 Type Battery

    Power adapter

    No. of battery slots

    1

    Power Consumption

    6W(7.2V/0.83A - 12V/0.5A)

    Warranty

    2-Years

    Country of Origin

    Japan

  12. PHYSICAL

  13. Total Weight (KG)

    1.7

    Total Dimensions (WxHxD) (mm)

    177x197x416

    Availability

    Usually in 9working days

HM360 CMOS 1/2.3" 19X HD

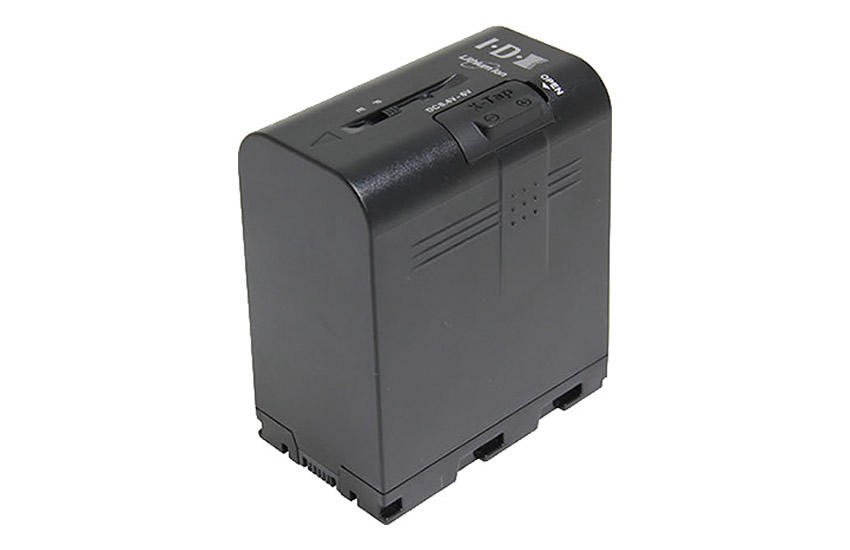

  • Battery 4900mAh
  • AC adaptor
  • AC cable
