DT-X71CI

MFR #DT-X71CI  BLK #197-0195

Special Price

Not in stock

Quick Overview

  • On-Camera Monitor
  • LCD 7" 1024x600Pixel
  • HDMI IN/OUT
  • Composite IN/OUT
  • Tally & Headphones output
  • Contrast: 900:1 - Brightness: 400nits
  • Scan / Black & White / Image Flip
  • 2-year Warranty

DT-X71CI

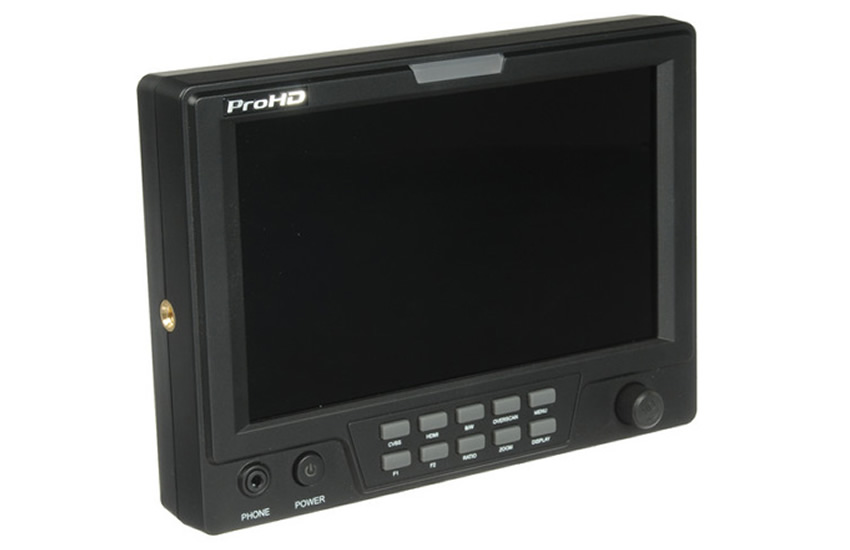

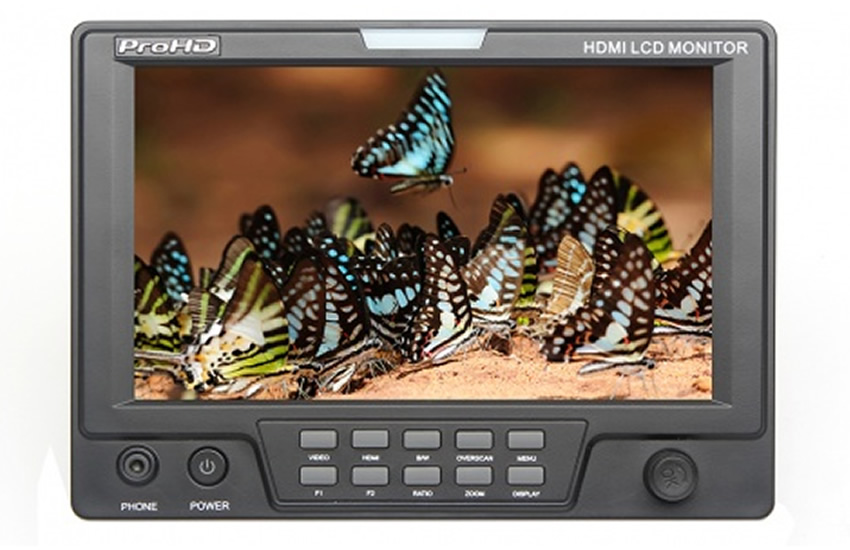

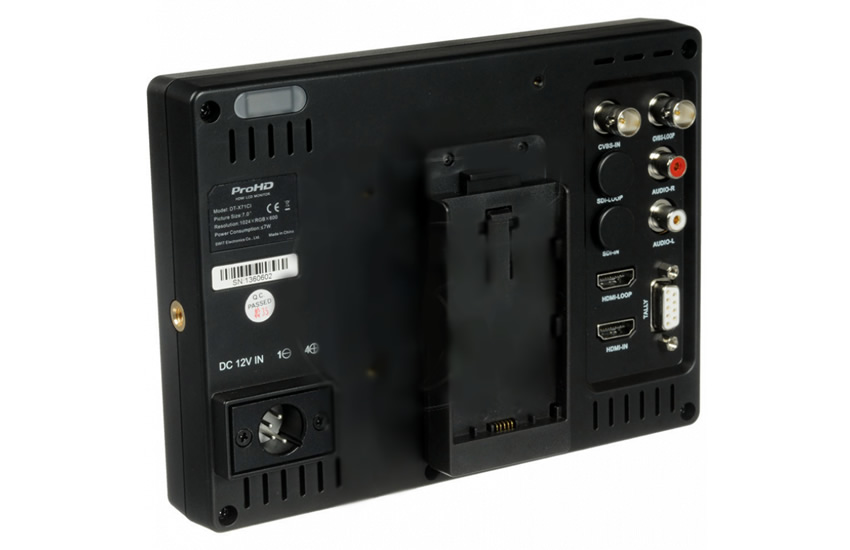

The DT-X71CI is an affordable high quality monitor for field and studio applications where HDMI or composite video inputs are available. This 7-inch LCD monitor produces 1024 x 600 resolution, H/V: 160/160 viewing angle and a 900:1 contrast ratio. It has front & rear dual TALLY lights accessed through an RJ-45 rear panel connector, video flip, customer editable video title, and safety mark display. The monitor accepts 1 HDMI and 1 Composite video, 1 stereo audio input. The DT-X71C is powered via a 4-pin XLR 12V DC connector or a snap-on 7.4V IDX SSL-JVC50 battery (optional)—the same battery used with the GY-HM600/650 cameras.



  • 1024×RGB×600
  • 16:9 / 4:3 adjustable
  • HDMI, Composite video, Stereo audio inputs
  • Dual 3-color TALLY light
  • Underscan / Overscan switch
  • Canon DLSR scale zoom-in
  • Picture flip
  • Customer editable video TITLE
  • Warranty Period: 2 years conditional

DT-X71CI

    STATUS

  1. Status

    NoView

    Monitor Type

    On Camera Monitor

  2. PANEL

  3. Panel Size

    7"

    Panel Type

    LCD

    Panel Resolution

    1024x600pixels

    Panel Aspect Ratio

    16:9

    Aspect Ratio Switch

    Yes

    Input Resolutions

    SD 576i PAL(16:9)

    SD 480i NTSC(16:9)

    HD 720: 1280x720pixels(16:9 aspect ratio)

    HD 1080: 1920x1080pixels(16:9 aspect ratio)

    Frames Supported

    24P/25P/30P/50P/50i/60P/60i @1920x1080Pixel
    50P/60P @1280x720Pixel
    25P/50i @720x576Pixel
    30P/60i @720x480pixel

    Contrast

    900:1

    Brightness

    400 nits

    Colors

    16.7 Million

    Color Depth

    8-bit

    Viewing Angle

    160 Degrees

  4. CONNECTIONS

  5. Video inputs

    HDMI

    CVBS(BNC)

    Video outputs

    HDMI

    CVBS(BNC)

    Audio inputs

    RCA Line

    2CH embedded audio HDMI

    Audio outputs

    Jack 3.5mm Stereo

    2CH Embedded Audio HDMI

    PC Connections

    RS-232

  6. GENERAL FEATURES

  7. Monitor Features

    Zoom

    Image Flip

    Overlay - Scan Mode

    Guides - Safety Marker

    Audio Meters

    Tally

    Yes

    Speakers

    Yes

  8. MORE SPECIFICATIONS

  9. Extras

    6.5V-17V input

    Power

    JVC SSL-JVC50 Type Battery

    4pin XLR 12-16V

    Power adapter

    No. of battery slots

    1

    Power Consumption

    7W(7.4V/0.94A - 12V/0.58A)

    Warranty

    2-Years

    Country of Origin

    Japan

  10. PHYSICAL

  11. Total Weight (KG)

    0.550

    Total Dimensions (WxHxD) (mm)

    192x139x47

    Availability

    Usually in 15working days

DT-X71CI

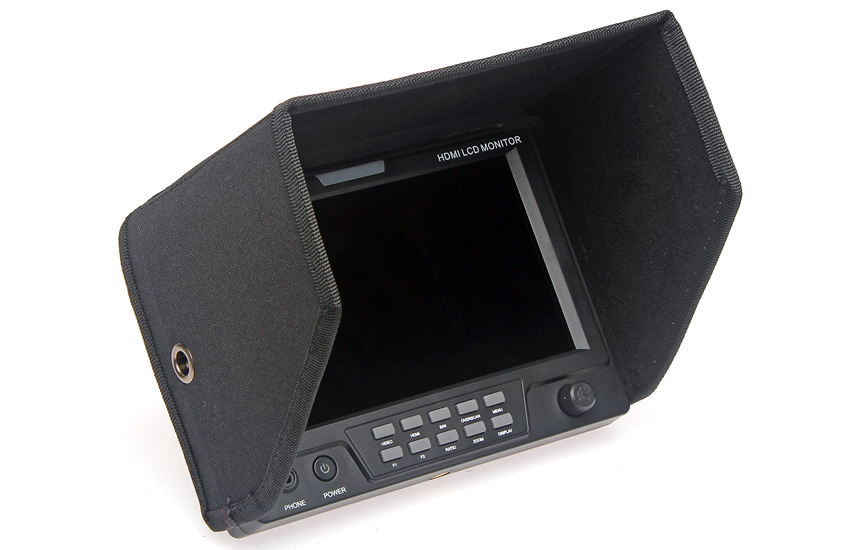

  • Sunhood
  • Power Adapter
  • AC Cable
  • Hot Shoe Adapter
  • Battery Plate JVC SSL-JVC50 Type
  • LCD Protection Film
  • Instructions

DT-X71CI

Operation Manual

JVC_DT-X71_Manual.pdf

General Features
