New

ATEM-Camera-Converter

MFR #SWRCONV  BLK #492-0114

Special Price

Not in stock

Quick Overview

  • Video Converter & Talkback
  • Optical Fiber IN/OUT
  • 3G/HD/SD-SDI & HDMI IN/OUT
  • Talkback Support
  • MIC IN, Audio IN/OUT
  • 4:2:2 10-bit Video Sampling
  • Suitable for Atem Studio Comverter
  • High Quality

ATEM-Camera-Converter

Get everything you need for cameras in live production with a single converter! Connect your camera’s SDI or HDMI outputs for conversion to optical fiber, while your switcher program feed can be fed back via optical fiber for camera monitoring. ATEM Camera Converter includes an internal battery, talkback, tally, and microphone inputs!

ATEM Camera Converter and ATEM Studio Converter are designed to be used at either end of a live camera connection. Now you can easily connect cameras to production switchers, even when they are huge distances apart. Each converter has been designed to make it easier than ever to connect to cameras with video, audio, talkback and tally. The battery powered ATEM Camera Converter is located at the camera and is designed to be used in remote locations. The ATEM Studio Converter has a rack mount design that contains all connections built into the unit.



ATEM-Camera-Converter

    STATUS

  1. Status

    New

    Converter Type

    Digital to Digital Converter

    Talkback Converter

    Power Type

    External Power Adapter

  2. OPTIONS-SXETIKA

  3. Options

    Camera Converter

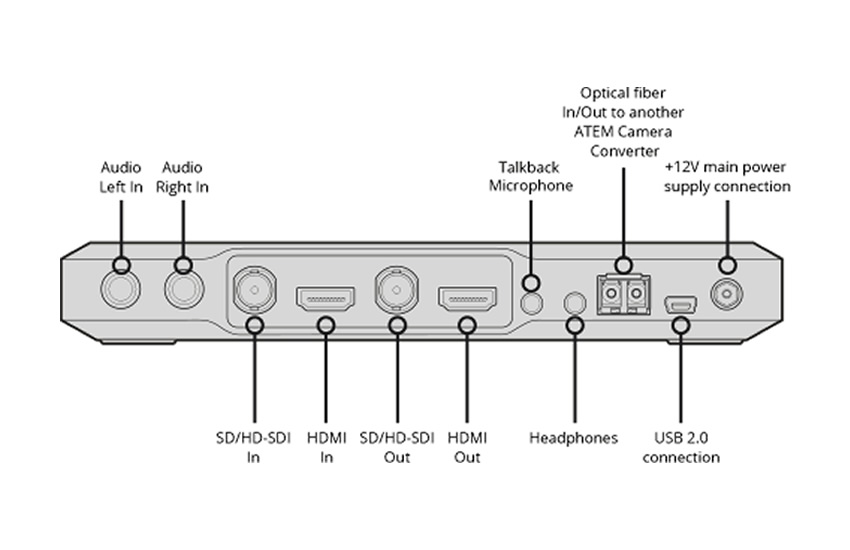

  4. CONNECTIONS

  5. Video inputs

    3G/HD/SD-SDI (BNC)

    HDMI

    Optical Fiber (LC Connector)

    Video outputs

    3G/HD-SDI (BNC)

    HDMI

    Optical Fiber (LC Connector)

    Audio inputs

    Jack 3.5mm MIC

    Jack 6.3mm MIC

    2CH embedded audio SDI

    2CH embedded audio HDMI

    4CH embedded audio Optical Fiber

    Audio Output

    Jack 3.5mm Phones

    2CH Embedded Audio SDI

    2CH Embedded Audio HDMI

    4CH embedded audio Optical Fiber

    PC Connections

    Mini-USB2.0

  6. GENERAL FEATURES

  7. Max Resolution Supported

    SD 480i NTSC

    SD 576i PAL

    HD 720: 1280 x 720pixels (16:9 aspect ratio)

    Full HD: 1920 x 1080pixels (16:9 aspect ratio)

    2K: 2048 x 1080pixels (1.89 aspect ratio)

    Frames Supported

    24P/25P @2048x1080Pixel
    24P/25P/30P/50P/50i/60P/60i @1920x1080Pixel
    50P/60P @1280x720Pixel
    50i @720x576Pixel
    60i @720x480Pixel

  8. MORE SPECIFICATIONS

  9. Extras

    4:2:2 Video Sampling.
    Bi-directional video plus tally and talkback.

    Power

    Internal Battery

    Power adapter

    Power Consumption

    Not Specified (12V DC input)

    Warranty

    2-Years

    Country of Origin

    Australia

  10. PHYSICAL

  11. Total Weight (KG)

    0.74

    Total Dimensions (WxHxD) (mm)

    202x43x120

    Availability

    Usually in 15working days

ATEM-Camera-Converter

  • ATEM Camera Converter
  • SD card with software and manual

ATEM-Camera-Converter
