CCU-100J
Special Price
Not in stock
Quick Overview

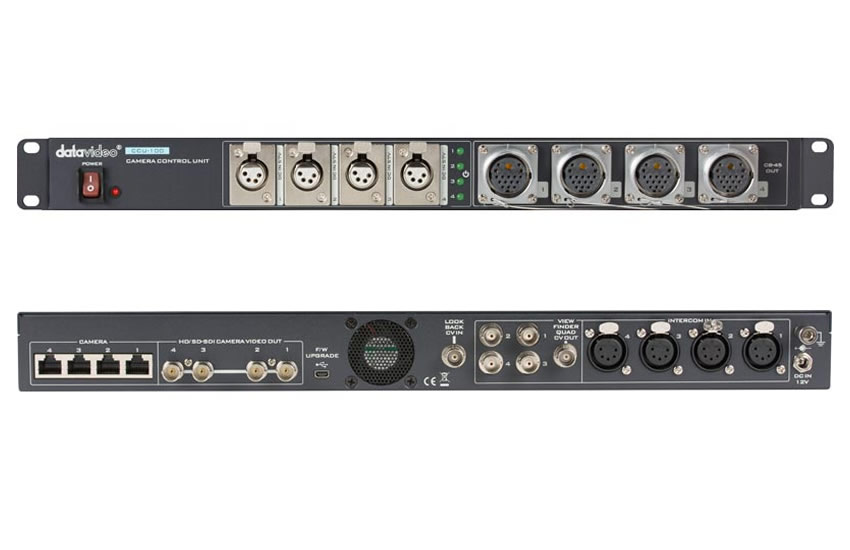

- Rackmount CCU Controller
- Suitable for 4x JVC Cameras
- 17-pin Multi Cable (Intercom/Power)
- 4xHD/SD-SDI & 5xCVBS Outputs
- 4x XLR 5-Pin intercom connections
- Ethernet Connection for MCU/RCU

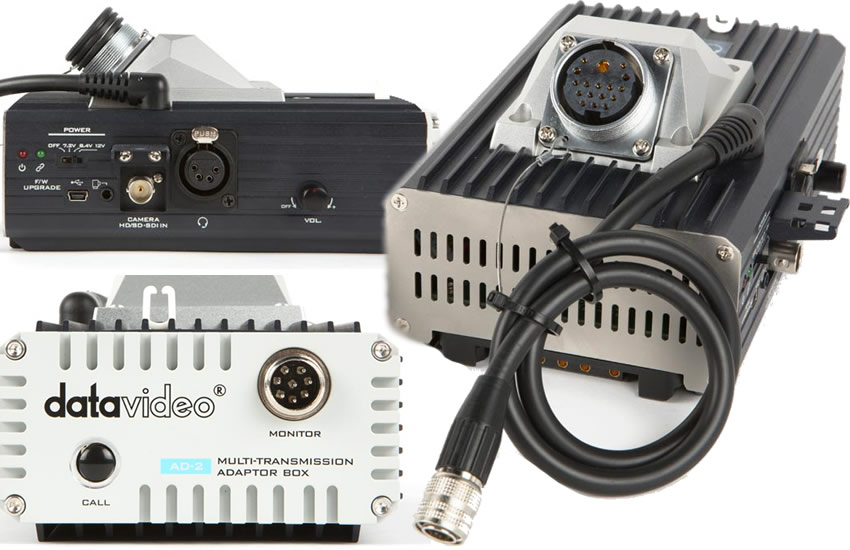

- Includes AD-2J Camera Adaptor
- 2-year Warranty
CCU-100J
The system simultaneously transmits digital SDI and analogue signals as well as camera control, look back, camera view finder data, tally and intercom call signals between professional cameras and the switcher system. CCU-100J and AD-2J form an integrated solution that allows you to get things done fast, easy and within budget.
- Camera control unit - JVC
- Connection between CCU-100 and up to 4 AD-2’s to control 4 JVC cameras
- Remote control of camera functions
- HD/SD SDI video transmission from digital camera
- Return colour view finder / monitor video
- Return look back video signal
- Two-way headset intercom
- Tally Support
- Power Supply
- Ethernet Port for Remote Control
- Includes: 4 x AD-2J Multi Transmission Adaptor Box, 4 x RMC-240 Remote Controller, 4x HP-3 headphones
Supported functions
- Record and Playback
- Camera User memory functions
- Camera OSD Menu Navigation
- SHORT MARK
- Shutter adjustment
- Iris adjustment
- AWB & ABB functions
- White Balance A, B and Preset functions
- Knee & Bars functions
- Gain adjustment
- RGB / R & B gain and Master Pedestal controls
CCU-100J
-
Status
NoView
Controller TypeCCU
-
Video inputs
HD/SD-SDI (BNC)
Multi 17-Pin Connector (Video/Audio/Intercom)
Video outputsHD/SD-SDI (BNC)
CVBS(BNC)
Multi 17-Pin Connector (Video/Audio/Intercom)
Audio inputs5-PIN XLR MIC/LINE
Audio outputs5-PIN XLR Intercom Connection
PC ConnectionsUSB
Ethernet RJ-45
Other ConnectionsLanc input
RCU Connector
-
Suitable for
JVC Professional Cameras with RCU Connector
Cable Length (m)Up to 100m (optional)
-
Extras
4x Ethernet connectors to connect to RCU Controller.
Rackmount.
USB for Firmware update.
CCU main unit has four 4-Pin XLR Connectors to power the cameras through multi cable.
PD-6 is recommended.
Return Video, Tally, Intercom, RCU SupportPower4pin XLR DC input
Power adapter
Power Consumption180Watt(12V/15A)
When all Cameras are Connected.Warranty3-Years
Country of OriginChina
-
Total Weight (KG)
12.0
Weight in Detail1.8KG for each AD-2 Adapter.
3.5KG for CCU-100J main Unit.Total Dimensions (WxHxD) (mm)440x219x243
Dimensions in Detail126x175x85mm for each AD-2 adapter
440x49x243mm for CCU-100J main Unit.AvailabilityUsually in 9working days
STATUS
CONNECTIONS
GENERAL FEATURES
MORE SPECIFICATIONS
PHYSICAL
CCU-100J
- CCU Controller
- 4x AD-2J Multi Transmission Adapter
- 4x RMC-240 Remote Controller
- 4x HP-3 Headphones
- Instructions
CCU-100J
Datavideo CCU-100J Manual
Datavideo_CCU-100P_Manual.pdf
